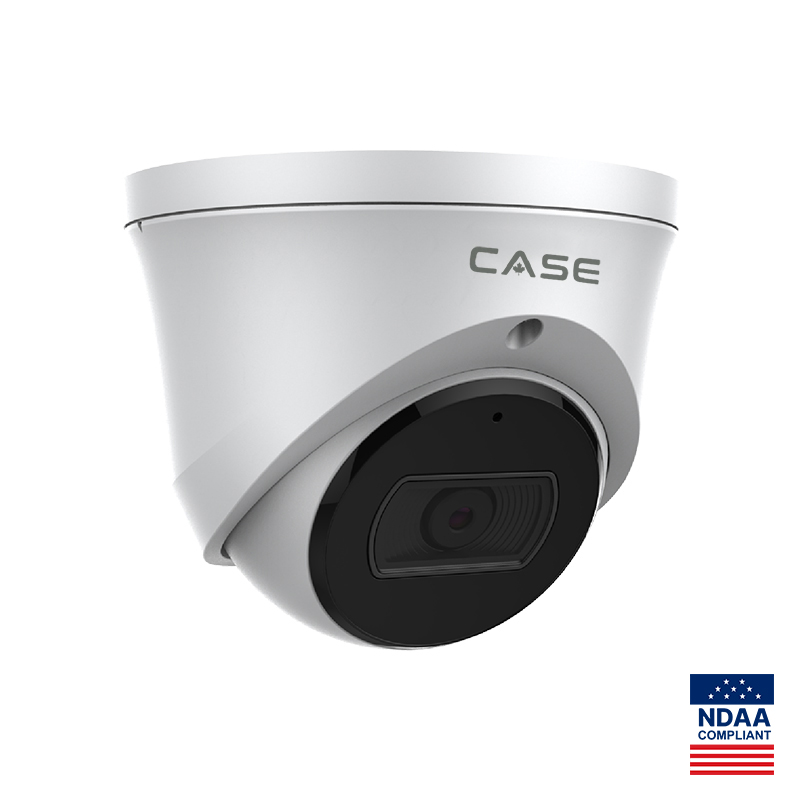

CS-I5XS 2.8mm NDAA

Camera
Image Sensor 1/2.8” CMOS
Signal System PAL/NTSC
Min. Illumination Color: 0.002Lux@ (F1.6, AGC ON), B/W: 0Lux with IR
Shutter Time 1s to 1/100,000s
Day & Night Dual IR Cut Filter with Auto Switch
Wide Dynamic Range 120dB
Angle Adjustment pan 0~340°, tilt 0~75°, roate 0~360°
Lens
Lens Type Fixed
Focus 2.8mm
Lens Mount M12
Aperture F1.6, Fixed
FOV +RUL]RQWDO¿HOGRIYLHZƒ
Illuminator
IR LEDs 2
IR Range Up to 30m
Wavelength 850nm
White LEDs/Warmlights N/A
Compression Standard
Video Compression S+265/H.265/H.264
Video Bit Rate 32Kbps~6Mbps
Audio Compression G.711/G.711U/ADPCM
Audio Bit Rate 8K~48Kbps
Max. Resolution 2592×1944
Main Stream
PAL: 20fps (2592×1944, 2592×1520), 25fps (2560×1440, 2304×1296, 1920×1080, 1280×720)
NTSC: 20fps (2592×1944, 2592×1520), 25fps (2560×1440), 30fps (2304×1296, 1920×1080, 1280×720)
Sub Stream
PAL: 25fps (704 576, 704 288, 640 360, 352 288)
NTSC: 30fps (704 480, 704 240, 640 360, 352 240)
Third Stream N/A
Image Setting Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
Image Enhancement BLC/3D DNR/HLC
ROI N/A
OSD 16 16, 32 32, 48 48, 64 64, adaptable size, Letters Such as Week, Date, Time, Total 3 Regions
Picture Overlay N/A
Privacy Mask Yes, 4 regions
Smart Defog Yes
Feature
Alarm Trigger 0RWLRQ’HWHFWLRQ0DVN$ODUP,3$GGUHVV&RQÀLFW
Video Analytics Tripwire, Perimeter
Early Warning(EW) N/A
Network
ANR N/A
Protocols TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, MULTICAST, IPV4, NTP, UDP, Telnet, ICMP, RTP, RTSP, UPnP
System Compatibility
Remote Connection ≤7
Client
Web Version Web5
Interface
Communication Interface 1 RJ45 10M/ 100M self adaptive Ethernet port
Audio Mic in
Alarm N/A
Reset Button Yes
On-board storage Built-in MicroSD card slot, up to 512 GB
General
Firmware Version –
Web Client Language 15 languages
English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French,
Polish, Dutch, Hebraism, Arabic, Vietnamese
Operating Conditions -35℃~65 , 0℃~95% RH
Power Supply DC 12V±25%, PoE (802.3af)
Power Consumption MAX: 6W (12V) MAX: 7W (PoE)
Protection IP67, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017
Heater N/A
Dimensions Φ116.6 83.7mm ( 4.59 3.30inch)
Weight Metal+Plastic: 0.34Kg (0.75lb) Metal: 0.47Kg (1.04lb)
