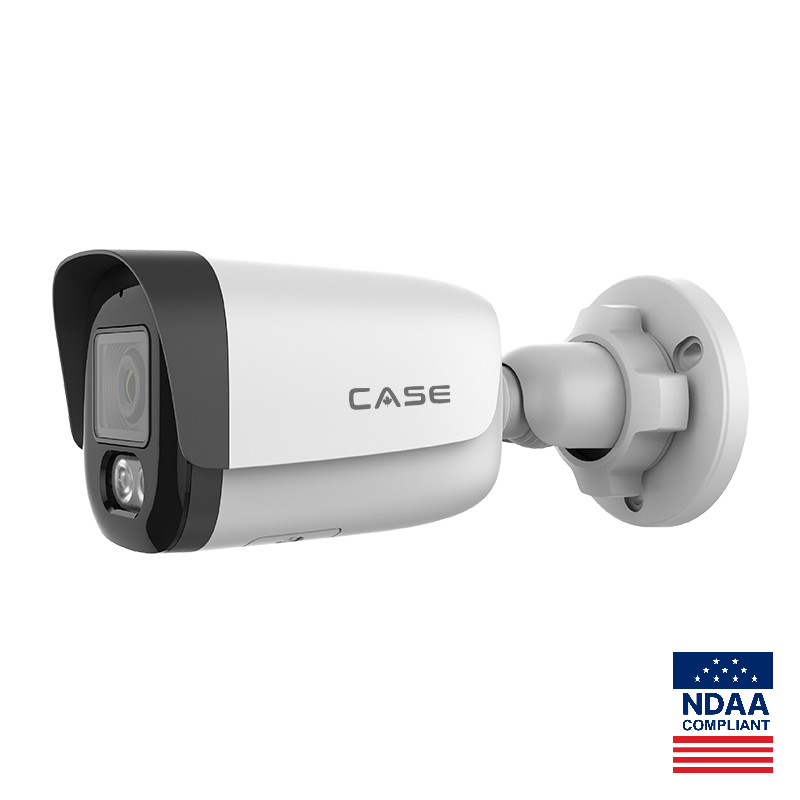

CS-I8WQ 2.8mm NDAA

Camera
Image Sensor 1/2.8” CMOS
Signal System PAL/NTSC
Min. Illumination Color: 0.002Lux@ (F1.6, AGC ON), B/W: 0Lux with IR
Shutter Time 1s to 1/100,000s
Day & Night Dual IR Cut Filter with Auto Switch
Wide Dynamic Range 120dB
Angle Adjustment Bracket, pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Lens Type Fixed
Focus 2.8mm
Lens Mount M12
Aperture F1.6, Fixed
Illuminator
White LEDs 2
Whitelight Distance Up to 30 m
Wavelength 850nm
White LEDs/Warmlights 2
Range 15-20m
Compression Standard
Video Compression S+265/H.265/H.264
Video Bit Rate 32 Kbps~16 Mbps
Audio Compression G.711A/G.711U/ADPCM_D/AAC_LC
Audio Bit Rate 8K~48Kbps
Max. Resolution 3840×2160
Main Stream PALヲ20fpsム3840×2160，3072×2048メ，25fpsム2560×1440，2304×1296，1920×1080，1280×720メ
NTSC: 20fpsム3840×2160，3072×2048メ，30fpsム2560×1440，2304×1296，1920×1080，1280×720メ
Sub Stream PAL: 25fps(704×576，704×288，352×288，640×360メ
NTSC: 30fps(704×480，704×240，352×240，640×360メ
Third Stream PALヲ25fps(704×576，704×288，352×288，640×480メ
NTSC: 30fps(704×480，704×240，352×240，640×480メ
Image Setting Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
Image Enhancement BLC/3D DNR/HLC
ROI 8
OSD 16×16, 32×32, 48×48, 64×64, 96×96, adaptable size, Letters Such as Week, Date, Time, Total 3 Regions
Picture Overlay Yes
Privacy Mask Yes, 4 regions
Defog Yes
Feature
Video Analytics Tripwire, Perimeter
Early Warning(EW) Yes
Network
ANR Yes, auto store video in SD card when NVR disconnected, and upload video to NVR when resumed connection
(Only Support Tiandy ANR NVR)
Protocols TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, MULTICAST, UPnP, FTP,
IPV4, NTP, SMTP, IGMP, 802.1x, QoS, IPV6, ARP, UDP, SNMP, SSL, SIP, Telnet, RTMP, SFTP, NFS
System Compatibility ONVIF (PROFILE S/T/G), SDK, CGI,Milestone,SRTP,RTMP
Remote Connection ≤2
Client
Web Version Web6
Interface
Communication Interface 1 RJ45 10M/ 100M self adaptive Ethernet port
Audio I/O 1/1
Alarm I/O 1/1
Reset Button Yes
On-board storage Built-in Micro SD card slot, up to 512 GB
General
Web Client Language
17 languages
Hebrew/Vietnamese/Arabic/German/Ukrainian
Operating Conditions -40℃～65℃, 0～95% RH
Power Supply DC 12V±25%, PoE (802.3af)
Power Consumption MAX: 7W(12V) MAX: 8W(POE)
Protection IP67
Heater N/A
Dimensions 170.7×68x68mm
Net Weight 0.52kg
Dimensions of single packing case 210×92x110mm
Gross Weight 0.65kg
Volume of packing box 24
