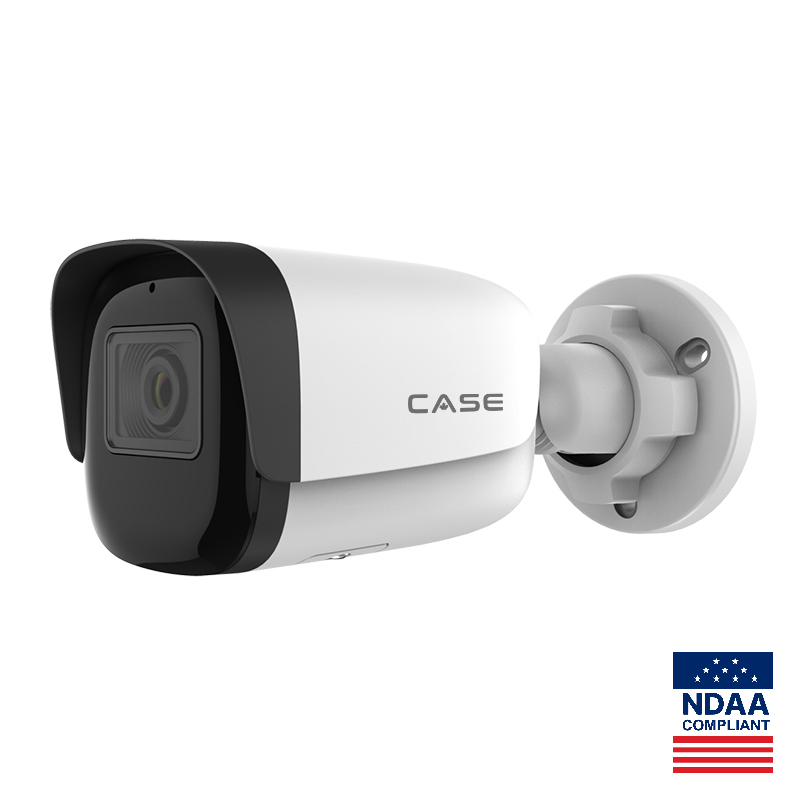

CS-I8WS M-2.8mm NDAA

Camera
Image Sensor 1/2.8” CMOS
Signal System PAL/NTSC
Min. Illumination Color: 0.003Lux@ (F1.6, ACG ON), B/W: 0Lux with IR
Shutter Time 1s to 1/100,000s
Day & Night Dual IR Cut Filter with Auto Switch
Wide Dynamic Range 120dB
Angle Adjustment Bracket, pan 0~360°, tilt 0~75°, roate 0~360°
Lens
Lens Type Fixed
Focus 2.8mm/4mm
Lens Mount M12
Aperture F1.6, Fixed
Illuminator
White LEDs 2
Whitelight Distance Up to 50m
Wavelength 850nm
White LEDs/Warmlights N/A
Compression Standard
Video Compression S+265/H.265/H.264/M-JPEG
Video Bit Rate 32Kbps~16Mbps
Audio Compression G.711A/G.711U/ADPCM/AAC
Audio Bit Rate 8K~48Kbps
Max. Resolution 3840×2160
Main Stream PAL: 20fps (3840×2160, 3072×2048), 25fps (2560×1440, 2304×1296, 1920×1080, 1280×720)
NTSC: 20fps (3840×2160, 3072×2048), 30fps (2560×1440, 2304×1296, 1920×1080, 1280×720)
Sub Stream PAL: 25fps (704 576, 704 288, 640 360, 352 288)
NTSC: 30fps (704 480, 704 240, 640 360, 352 240)
Third Stream PAL: 25fps (704×576, 704×288, 640×360, 352×288) , NTSC: 30fps (704×480, 704×240, 640×480, 352×240)
Image Setting Saturation, brightness, contrast, sharpness, adjustable by client software or web browser
Image Enhancement BLC/3D DNR/HLC/Corridor Format
OSD 16×16, 32×32, 48×48, 64×64, 96×96, adaptable size, Letters Such as Week, Date, Time, Total 8 Regions
Picture Overlay Y
Privacy Mask Yes, 4 regions
Defog Yes
Feature
Video Analytics Tripwire, Perimeter
Early Warning(EW) N/A
Network
ANR Yes, auto store video in SD card when NVR disconnected, and upload video to NVR when resumed
connection (Only Support Tiandy ANR NVR)
Protocols TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, MULTICAST, UPnP, FTP,
IPV4, NTP, SMTP, IGMP, 802.1x, QoS, IPV6, ARP, UDP, SNMP, SSL, SIP, Telnet, RTMP, SFTP, NFS
System Compatibility
Remote Connection ≤7
Client
Web Version Web6
Interface
Communication Interface 1 RJ45 10M/ 100M self adaptive Ethernet port
Audio I/O Mic in
Alarm I/O N/A
Reset Button Yes
On-board storage Built-in MicroSD card slot, up to 512 GB
General
Firmware Version –
Web Client Language
15 languages
English, Russian, Spanish, Korean, Italian, Turkish, Simple Chinese, Traditional Chinese, Thai, French,
Polish, Dutch, Hebraism, Arabic, Vietnamese
Operating Conditions -40℃～65℃, 0～95% RH
Power Supply DC 12V±25%, PoE (802.3af)
Power Consumption MAX: 7W (12V) MAX: 8W (PoE)
Protection IP67, Lightning protection, surge protection and voltage transient protection meets EN 55035:2017
Heater N/A
Dimensions 160.8 68×74.5mm (6.33 2.68 2.93inch)
Weight 0.48Kg (1.06lb)
